Description:
Our chrome-plated plastic injection mold tooling is engineered for high-performance automotive part production, combining precision durability with corrosion resistance. Crafted from premium tool steels (P20, H13) or stainless steel (420SS), each mold undergoes CNC machining, EDM, polishing, and advanced electroplating to apply a hard chrome layer (0.0002″-0.001″ thickness) for extended service life. As an ISO-certified manufacturer, we provide OEM-compliant solutions and one-stop services—from design prototyping to mass production and post-processing—ensuring cost efficiency, rapid turnaround, and strict adherence to automotive industry standards (IATF 16949). Elevate your production with molds that deliver zero-defect consistency for complex geometries under high-pressure cycles.
Characteristics:
| Specification | Details |
| Mold Type | Plastic Injection Mold |
| Mold Material Options | P20, 718, 738, NAK80, S136 |
| Mold Base Standards | HASCO, DME, MISUMI, JIS, LKM, etc. |
| Runner System | Cold Runner / Hot Runner |
| Gate Options | Slide Gate, Sub Gate, Pin-point Gate |
| Cavity Configuration | Single or Multi-Cavity |
| Design Software Supported | UG, PROE, AutoCAD, SOLIDWORKS |
| Molding Equipment Used | CNC Machining, Wire Cutting, Milling Machine, EDM |
| Compatible Raw Materials | ABS, PP, PC, PA6, PA66, PVC, POM, PMMA, PS, etc. |
| Packaging Method | Wooden Pallet or Carton Packaging |
| OEM Services | Available – Please provide 2D/3D drawings or physical samples |
| Lead Time | Approximately 30 Days |
Surface Coating Options:
- Nitriding
Enhances surface hardness, wear resistance, and corrosion protection for long-lasting durability.
- PVD Coating
Provides a thin, wear-resistant coating (e.g., TiN, CrN) for improved mold life and reduced friction.
- Polishing
Achieves a high-gloss, smooth surface finish that improves part quality and reduces part sticking.
- Sandblasting
Creates a matte or textured surface, improving aesthetics and helping hide minor mold defects.
Quality Assurance:
Quality assurance for chrome-plated plastic injection mold tooling in the automotive industry requires adherence to IATF 16949 standards, material certifications (e.g., RoHS/REACH compliance), and rigorous process validation. Critical steps include pre-treatment inspections for surface finish (measured via profilometers like Mitutoyo Surftest), dimensional accuracy verification using CMMs (Zeiss or FARO systems), and coating thickness checks with XRF spectrometers (Olympus Vanta series). Hardness testing (Rockwell scales) and adhesion assessments per ASTM B571 (cross-hatch/tape tests) validate coating integrity, while salt spray testing (Q-Fog cabinets) confirms corrosion resistance. Certified labs must employ calibrated equipment and document traceability to automotive OEM specifications (e.g., GM, Ford, or VW material codes) for full compliance.
Factory Show:

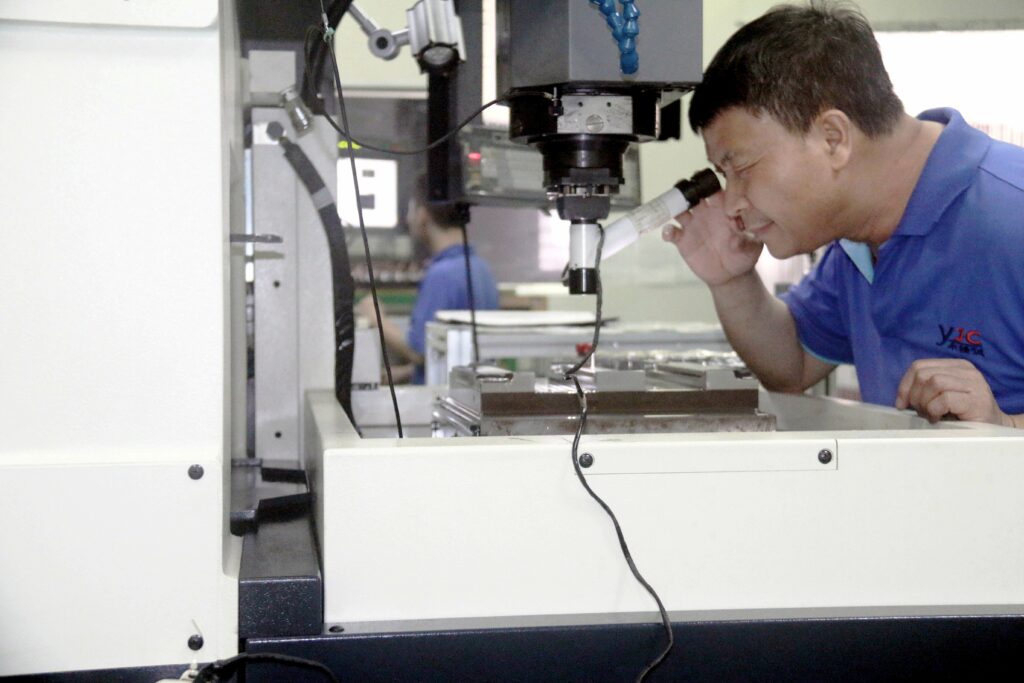

Our advanced manufacturing facility features cutting-edge technologies, including CNC machining, Mirror EDM, conventional EDM, and high-precision wire cutting, ensuring exceptional mold accuracy and repeatability. With 15 rubber compression molding machines and 2 LSR injection molding systems, we support high-volume production with unmatched speed and efficiency.
Certified to ISO 9001 and IATF 16949 standards, our facility maintains the highest quality through a comprehensive quality management system. Our inspection capabilities include 3D optical projectors, sealing integrity testers, durometers, and elasticity meters, all managed by a skilled quality assurance team.
Additionally, our Class 8 cleanroom and automated technologies, such as AutoDryers, high-speed doming equipment, and precision die-cutting machines, optimize operational efficiency and ensure product consistency. This streamlined approach enables us to deliver high-performance, precision-engineered components that meet the rigorous demands of today’s industries.
