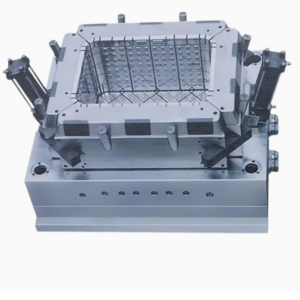

Overview
Our custom plastic injection mold tooling for industrial logistics boxes is engineered for durability, precision stacking, and high-volume production. Utilizing robust materials like HDPE and PP, our molds feature hot runner systems and efficient cooling to produce consistent, heavy-duty crates, totes, and containers that meet rigorous material handling demands. We offer full OEM and custom solutions.
Basic Information
| Attribute | Details |
|---|---|
| Mould Cavity | Family Mold or Multi-Cavity |
| Plastic Material | HDPE, PP, ABS (High-Impact Grades) |
| Process Combination Type | Injection Molding (with optional structural foam) |
| Application | Industrial Logistics, Storage, Material Handling |
| Runner System | Hot Runner (for efficiency) / Cold Runner |
| Design Software | UG NX, Moldflow (for warpage & cooling analysis) |
| Installation | Fixed on large-tonnage presses (800-2500T) |
| Certification | ISO9001, IATF16949 |
| Customized | Yes (Full DFM support for ribs, stackings lids, handles) |
| Mould Material | Pre-hardened Steel (P20, 718), H13 for cores |
| Hardness | 48-52 HRC |
| Parts Material | HDPE, PP, Copolymer PP, ABS |
| Mould Life | 1,000K – 1,500K+ Shots |
| Transport Package | Heavy-Duty Wooden Box / Steel Frame |
| Specification | Fully Customizable (Size, Wall Thickness, Features) |
| Trademark | OEM |
| Origin | Xiamen, China |
| Production Capacity | 50-80 Sets/Month (Large Mold Focus) |
Advantages of Our Logistics Box Molds
-
Engineered for Structural Integrity & Durability: Molds are designed to produce parts with optimal rib design, wall thickness distribution, and material flow to achieve high impact strength and load-bearing capacity for rugged use.
-
Precision for Secure Stacking & Nesting: Critical features such as stacking lips, interlocking rims, and nesting guides are machined with high accuracy to ensure safe, stable stacking and space-saving empty container nesting.
-
High-Efficiency Production Design: Incorporates advanced hot runner systems, conformal cooling channels, and automated unscrewing (for threaded features) to minimize cycle time and energy consumption in high-volume runs.
-
Versatility for Custom Logistics Solutions: Capable of molding integrated hinged lids, reinforced handles, label holders, and RFID windows in a single tool, creating tailored solutions for automated supply chains.
Quality Assurance
Our quality assurance process for industrial molds includes advanced Moldflow analysis before manufacturing to predict and prevent warpage or weak points. During production, we use laser trackers and large-volume CMMs to verify the dimensional accuracy of massive core and cavity blocks. Finished molds undergo sample trials where produced boxes are tested for dimensional conformity, stacking stability, and load capacity (often via compression testing). Our ISO 9001 and IATF 16949 certified system ensures every mold delivers the robustness and repeatability required for 24/7 logistics operations.
Our Factory
Our facility is equipped with large-scale machining centers, deep-hole drilling for cooling lines, and EDM machines capable of handling the sizable tooling blocks required for logistics box molds. We operate a range of high-tonnage injection molding presses (800 to 2500 tons) for mold trials and production validation. Quality control utilizes 3D scanning for large-part geometry verification and durometers for material hardness checks. Governed by IATF 16949 standards, our integrated process—from design and steel treatment to final tryout—ensures the delivery of durable, high-performance tooling for the global logistics and packaging industry.
